ForenSeq Universal Analysis Software
The ForenSeq Universal Analysis Software (UAS) provides a platform for analyzing and managing forensic genomic data, simplifying complex bioinformatics. It brings the power of next-gen sequencing to the field of forensic genomics, and pairs it with first-class UI tools. Users can view a high-level overview of a sample, use the powerful filtering and flagging system to identify areas of interest, and drill down to the allele level to override individual calls. Data can then be exported in various formats such as Excel (*.xlsx) or CODIS (*.cmf), so that users can have full control of their data.
The initial v1 of this application was developed at Illumina. It was later spun off into a separate company as Verogen where a v2 was built from the ground up.
v1 Locus Overview

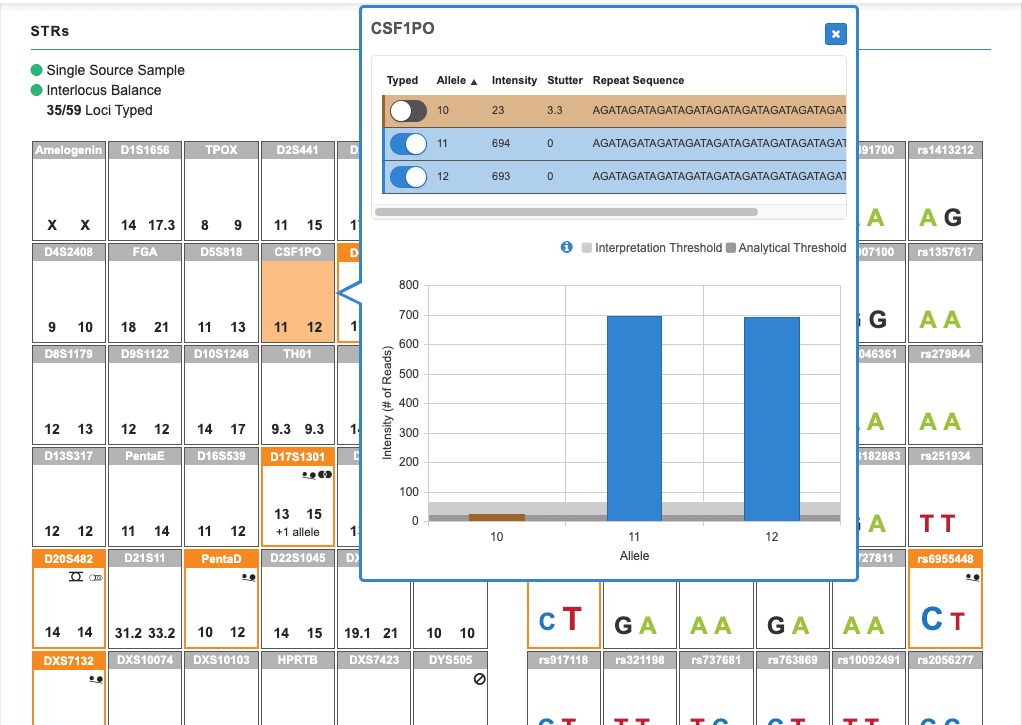

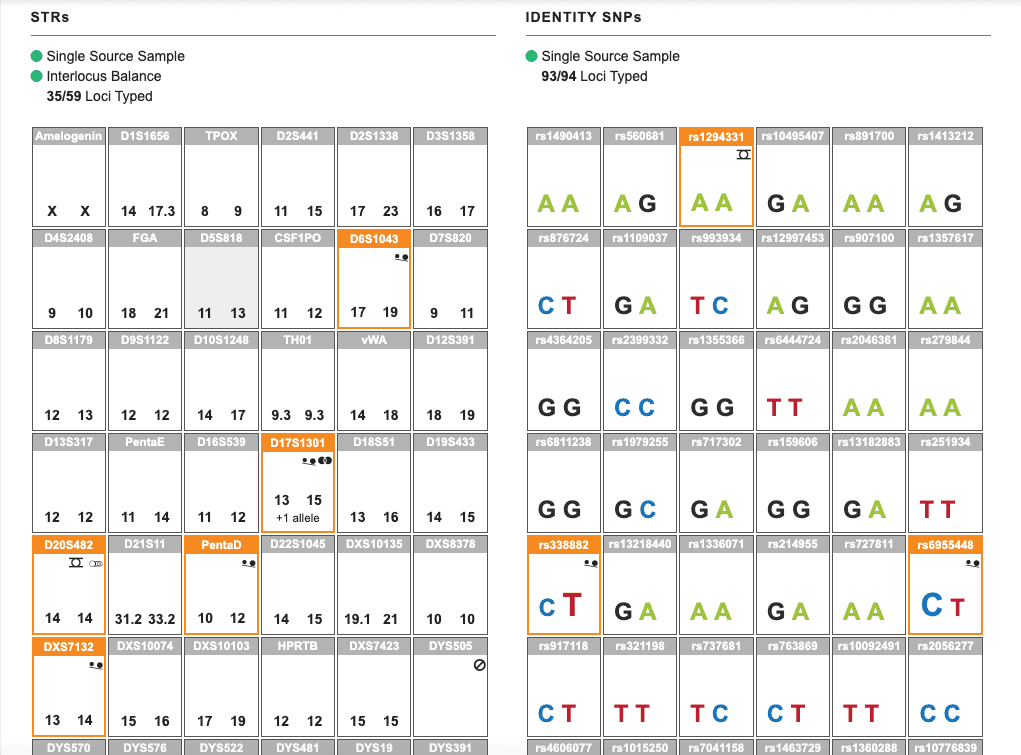

The locus overview is the heart of the UAS. Here, the user can see all the loci in a given sample at a glance. Calls for each locus are easily visible, and loci which have triggered various flags are highlighted in orange to help the user quickly identify what needs manual attention.
This iteration was built mostly using the now-defunct AngularJS along with Bootstrap v3.
v2 Locus Overview

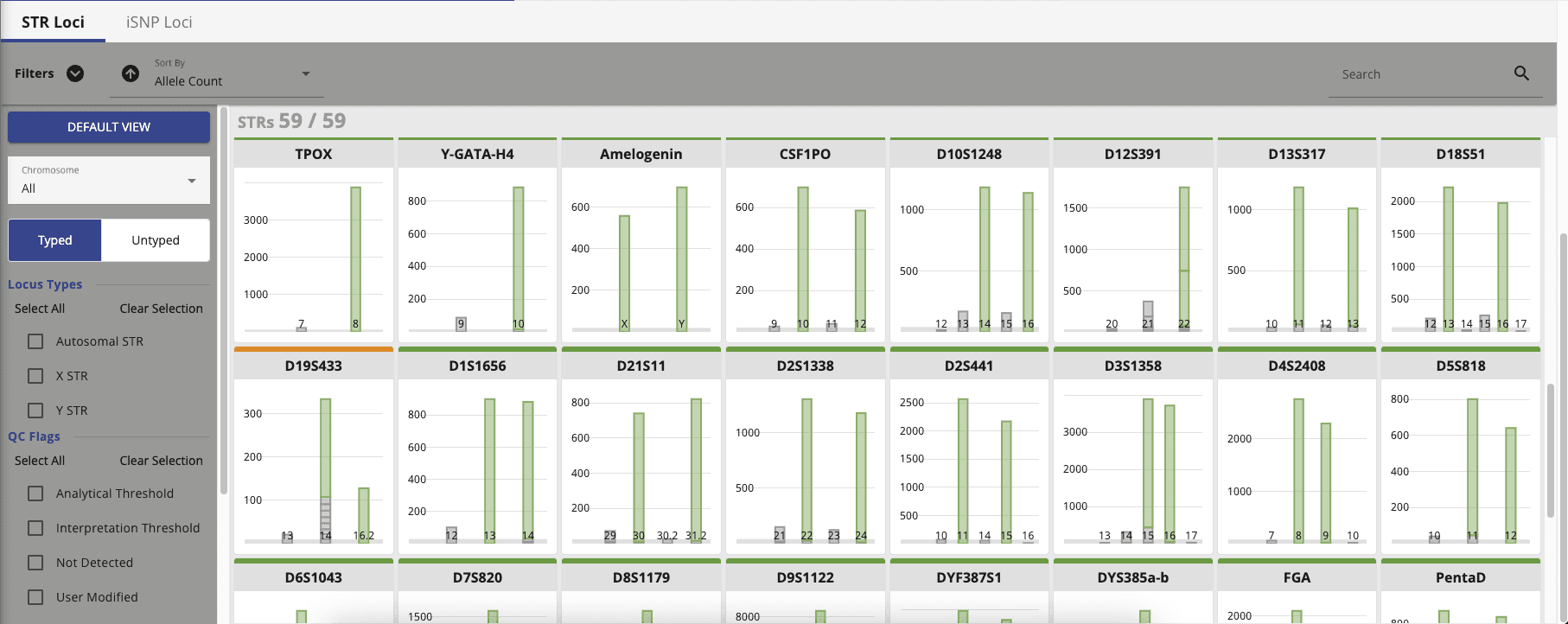

In v2, there were several things from the v1 design that I wanted to improve on. One of the most obvious changes is the addition of a bar graph to each individual locus box, showing the alleles and their read counts. This gives the users a lot more data at their fingertips to make decisions without having to drill down to the locus details level. It also has the effect of resembling the output of capillary electrophoresis, which is the old sequencing technology that forensics labs are most familiar with.
The tech stack also needed to be updated, since AngularJS was on its way out. ForenSeq UAS v2 is written in the new Angular framework along with Angular Material for most basic UI components. The charts are implemented using Plotly.js and taking advantage of Angular Material's virtual scrolling to minimize the amount of elements in the DOM.
v2 Locus Overview - Filters

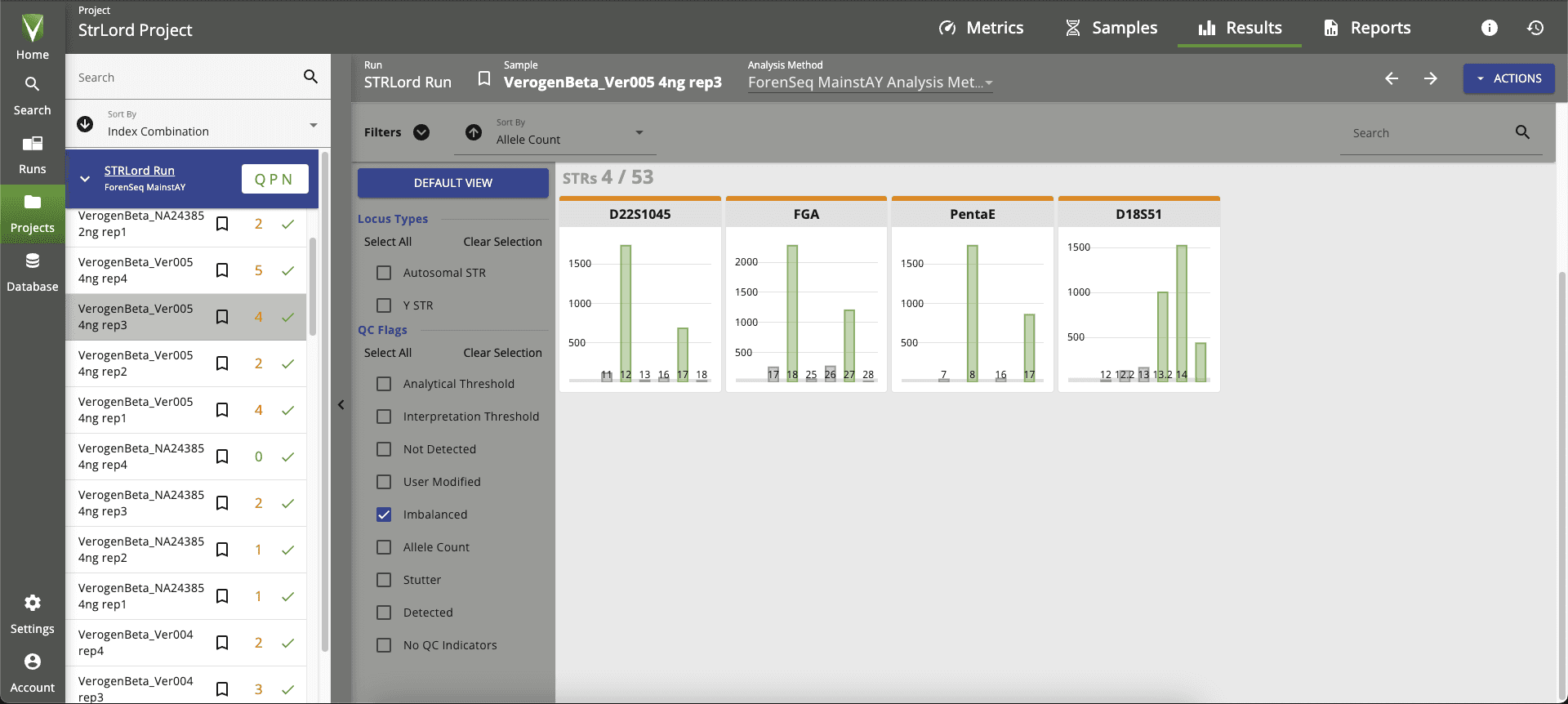

I also added powerful filter and sort capabilities that were missing from v1. The loci with flags are still highlighted in orange, but now the user can also take advantage of the filters in the sidebar to quickly isolate what they are looking for. They can also filter on common criteria like locus type, or directly by locus name using the search box in the upper right.
In order to make space for these new features, I changed the overall layout of the STRs and SNPs from a two column view to using two tabs instead. This gave us the space needed, and also gave us options to customize the filter sidebar for each tab.
The filtering (and the state management solution for the overall app) is powered by NGXS. Filter changes raise NGXS Actions which then perform the necessary filtering in action handlers and update the state with the list of filtered loci.
v1 Locus Details
Locus details are the most granular level of data the user can view. Here the user can see information on each allele that was detected in the locus, view their full sequence, and even override calls. This is also the only way that the user can see read counts for each allele, represented as a bar graph. In v1 this section appeared as a popover, which limited the available horizontal space for displaying the data, and also blocked other UI elements that the user may have wanted to interact with.
In v1, this feature was developed using qTip.js, a jQuery plugin which has since been deprecated. The tables and charts were built with Kendo UI.
v2 Locus Details

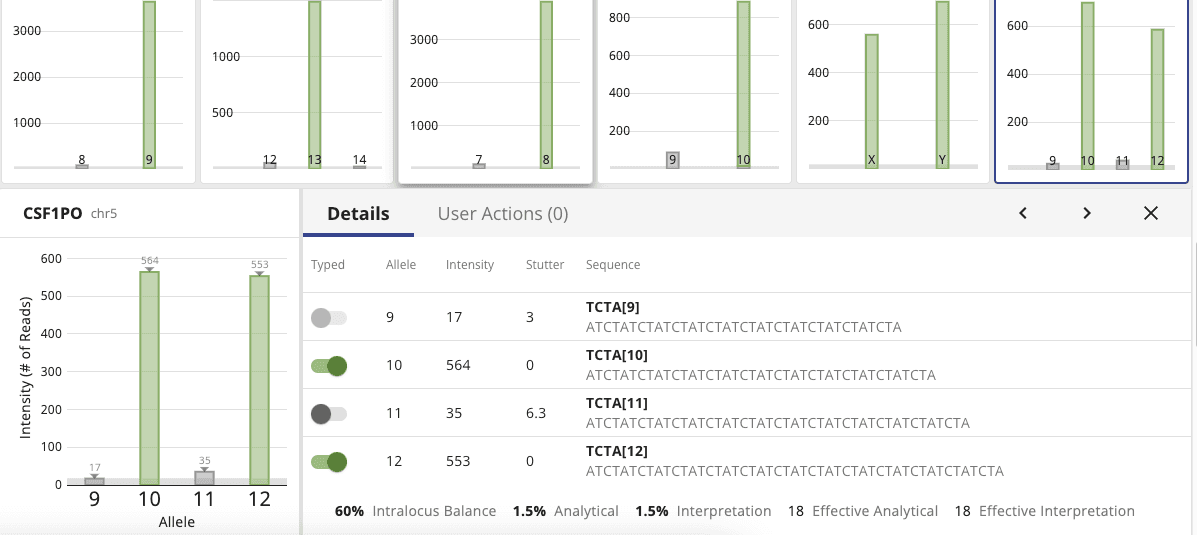

In v2, I opted to have the locus details open up underneath the row of the selected locus. This allows the component to stretch the full width of the available space, providing easier viewing of sequence data. Threshold information is clearly labeled and displayed with the new space available. The graph of alleles and read counts is still visible, though it has also been pulled up a level into the locus overview.
v1 Projects

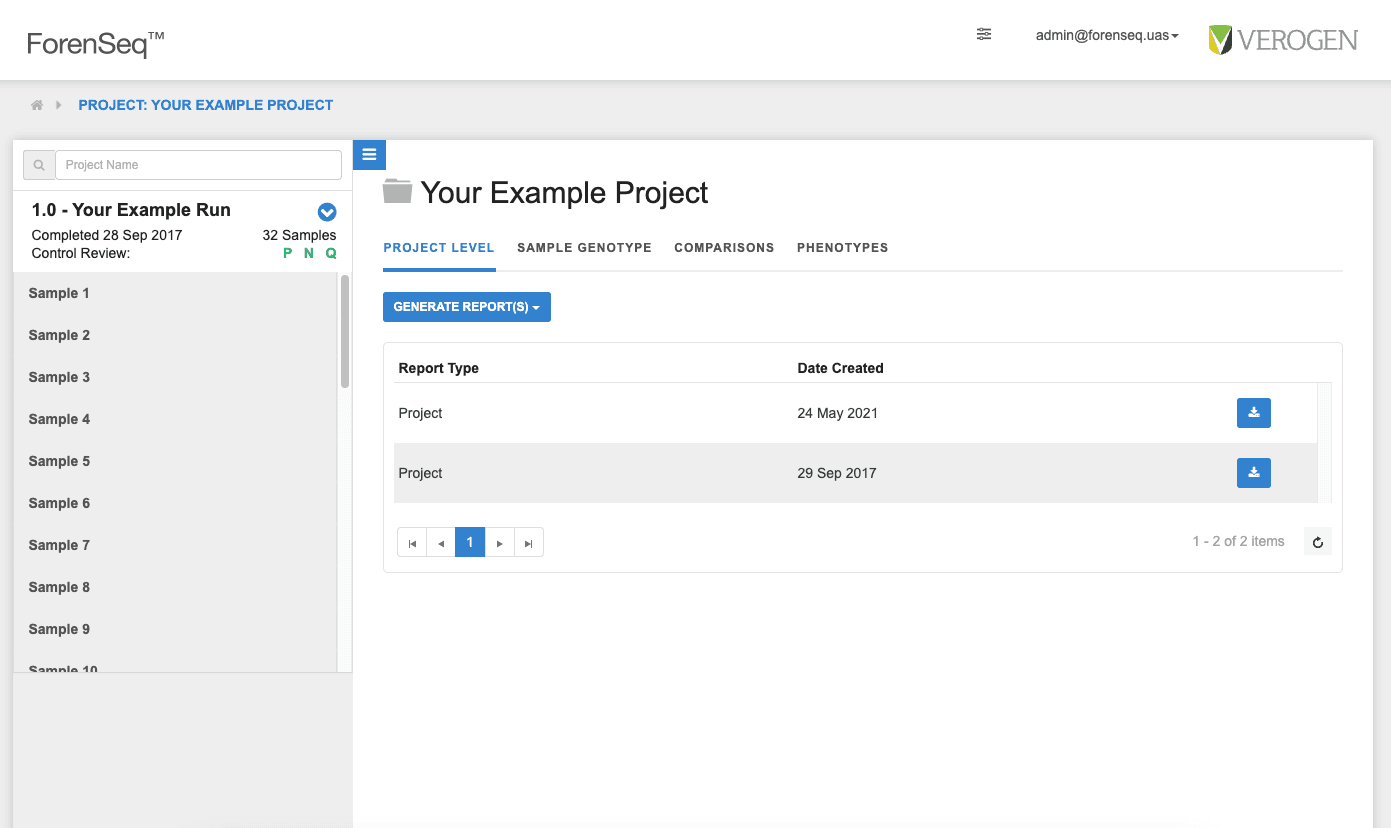

Projects are used as an organization tool for users to group related samples together (such as by case). The landing page for a project in v1 was rather simplistic, and was in fact just a way for them to download their Excel reports they had generated.
v2 Projects

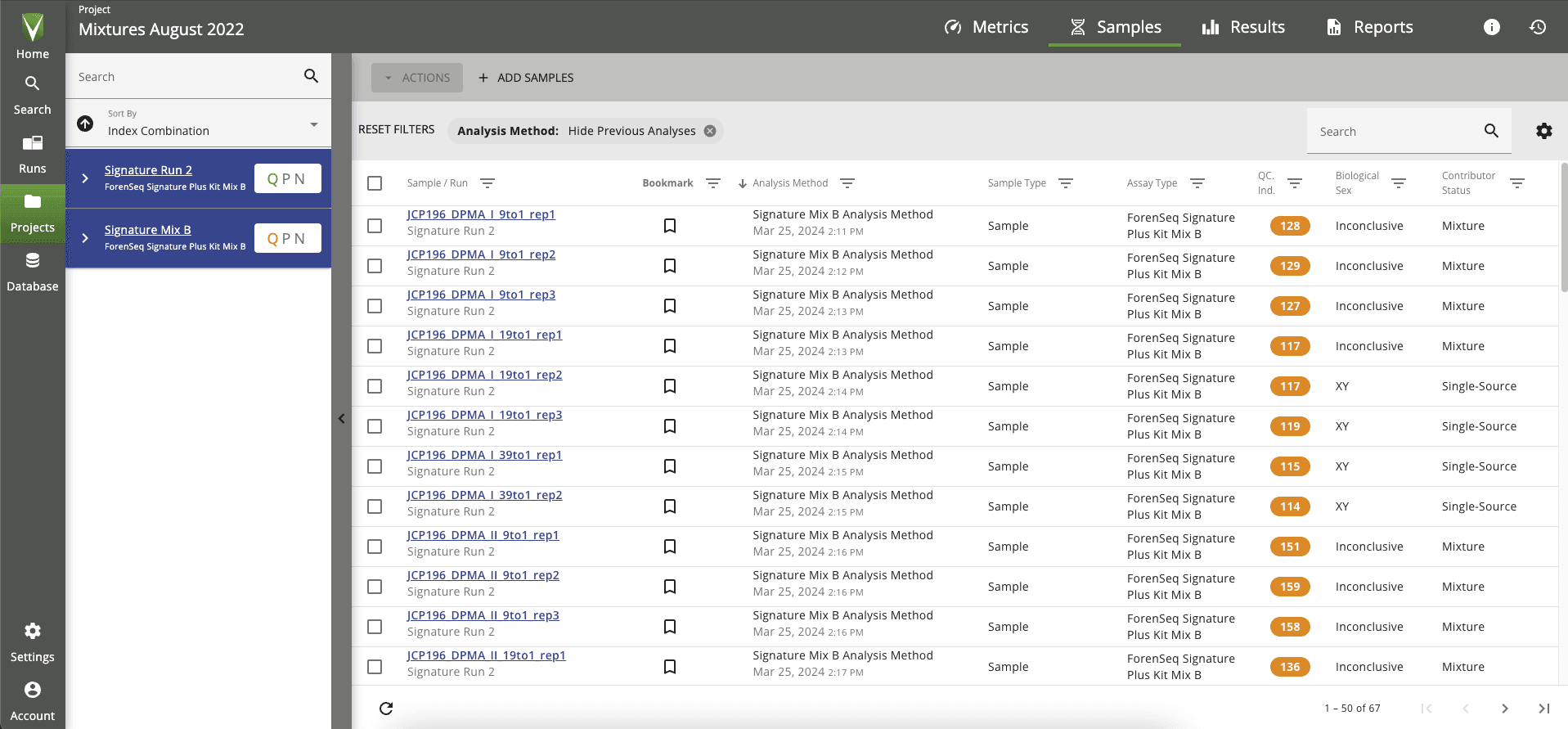

The v2 project page gives users much more powerful tools for working with their sample analyses. By putting the analyses into a table format, I can now add sorting and filtering options for users to take advantage of. One particularly useful feature is the ability to filter for a specific flag - for example to isolate all samples which have a locus that triggered an Interpretation Threshold flag.

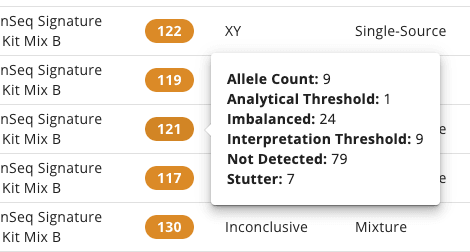

A tooltip on the QC Ind. column gives a helpful breakdown of exactly which flags were triggered in a given sample.
v2 mtDNA Analysis

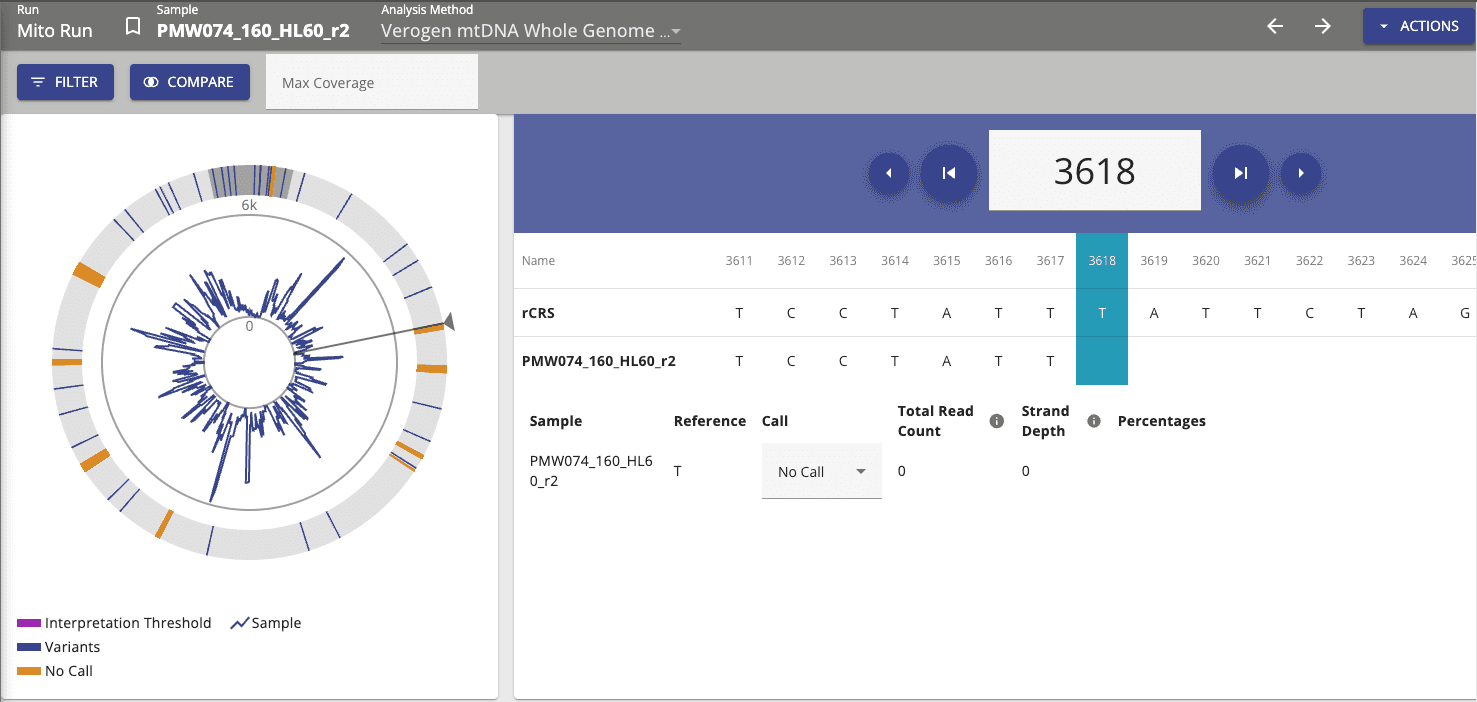

Mitochondrial DNA analysis is a unique use case which gave me the opportunity to come up with an innovative custom data visualization using the power of D3.js. Since mtDNA is circular in shape, the visual on the left takes a simple line graph and wraps it into a circle. Markers along the outer edge help indicate areas with high concentrations of variants and other flags. The component on the right allows the user to see the full genomic data at each position, as well as giving them precise control over what section of the DNA to view. The two components are synced so that updating the genomic position in one will update the position in the other, with D3.js powering smooth animations in the visual.
v2 Forensic Genealogy

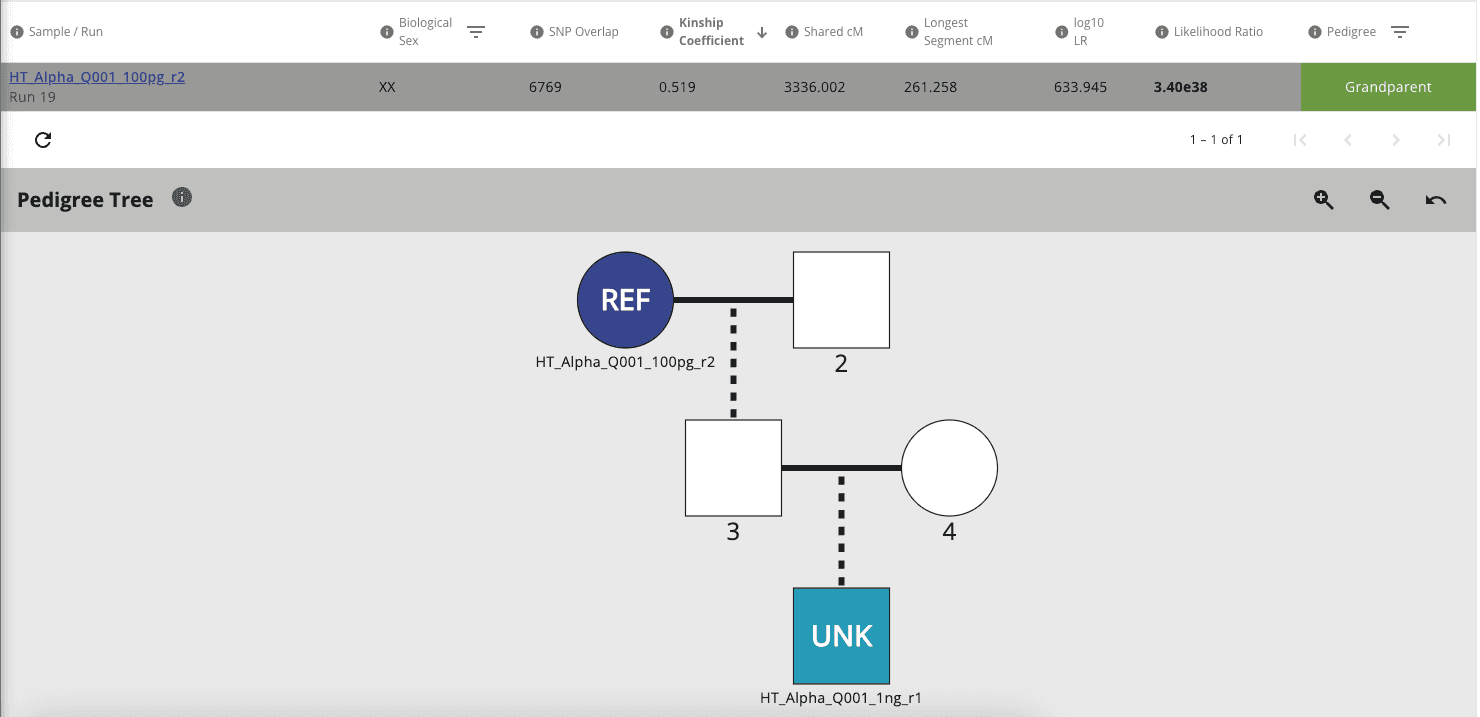

Another custom visualization I built with D3.js was a family tree diagram. This project was about trying to find family tree matches between a known sample and a database of unknown samples (the concept behind how the Golden State Killer was finally identified). The diagram helps the user quickly identify and visualize the potential pedigree between the two samples. The user can choose to override the calculated pedigree, with custom D3.js animations smoothly updating the diagram.
